Zhimei PT650D Weighing Indicator

Introduction

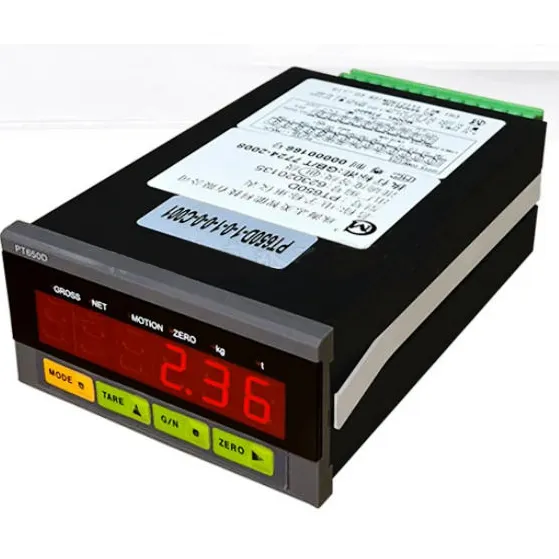

The PT650D weighing indicator is a multi‑purpose weighing instrument. It delivers many special features that were previously only available on high‑cost instruments. The PT650D is suitable for industrial and commercial applications including platform scales, floor scales, vessel scales, truck scales and crane scales.

Features

• Compatible with all resistive strain‑gauge force and weighing sensors
• Microprocessor‑controlled operation
• Clear and stable 13 mm, 6‑digit LED digital display
• Selectable display for gross weight and net weight
• Selectable weight display increments: 1, 2, 5, 10, 20 or 50
• “O.L” overload indication
• Four selectable decimal point positions
• Automatic zero tracking
• Tactile key‑operated automatic tare function
• Delta‑sigma conversion method
• Internal resolution: 16,000,000
• Displayed divisions: 300 ~ 10,000 divisions
• Sampling rate: approx. 200 times per second
• Power‑on self‑diagnosis function
• Function configuration via software
• External switch for protecting parameter settings and calibration

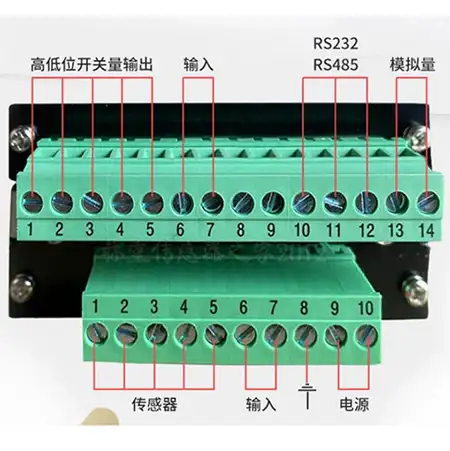

Optional Interface Boards

• Standard RS232 or RS485 data output interface
• High/low limit output interface (opto‑coupler output, 80 VDC withstand voltage, 300 mA)
• Parallel BCD data output interface
• Analog output interface

Optional Software

• Single‑material batching software option
